HEP TECH CO., LTD.

LWDC 40W 350-1050mA NFC DALI-2 DT6 TouchDIM

LWDC40W1050NLR_WH

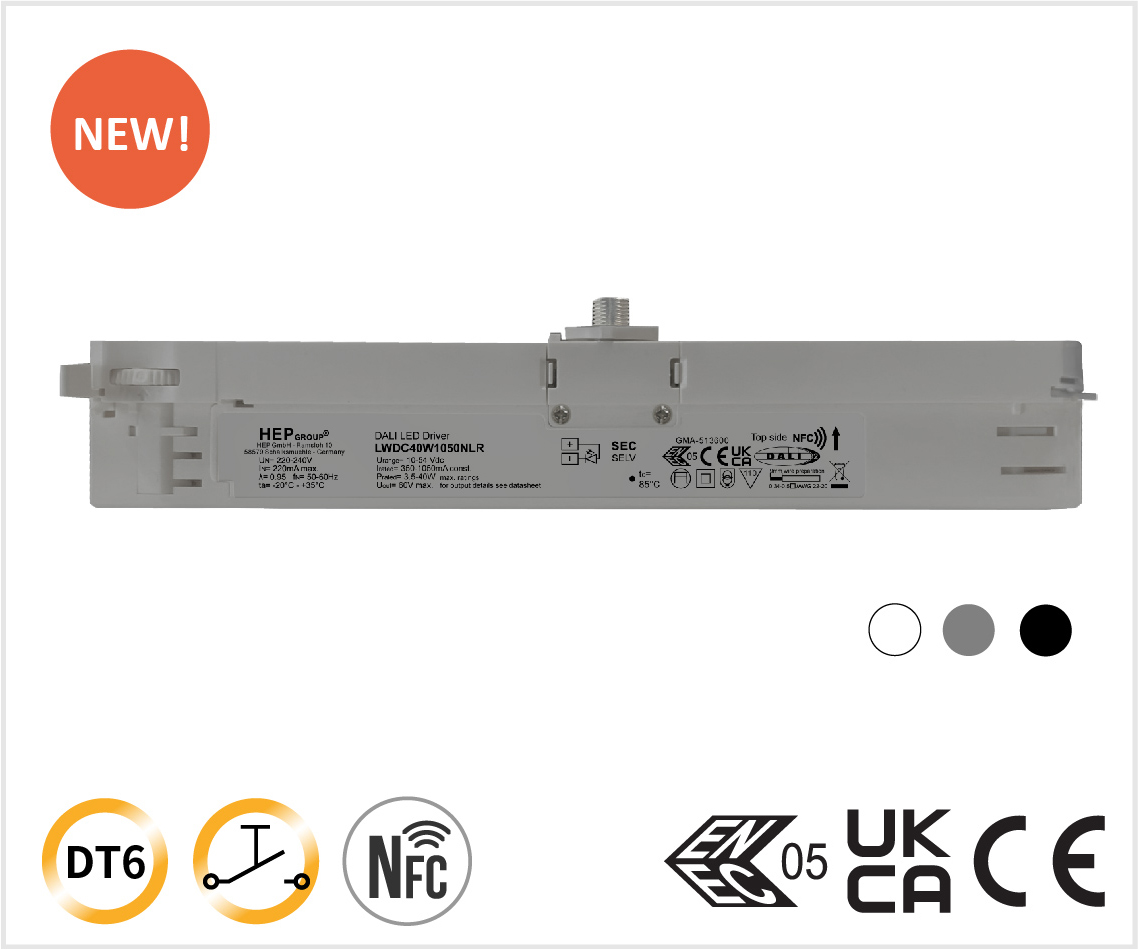

LWDC40W1050NLR_GY

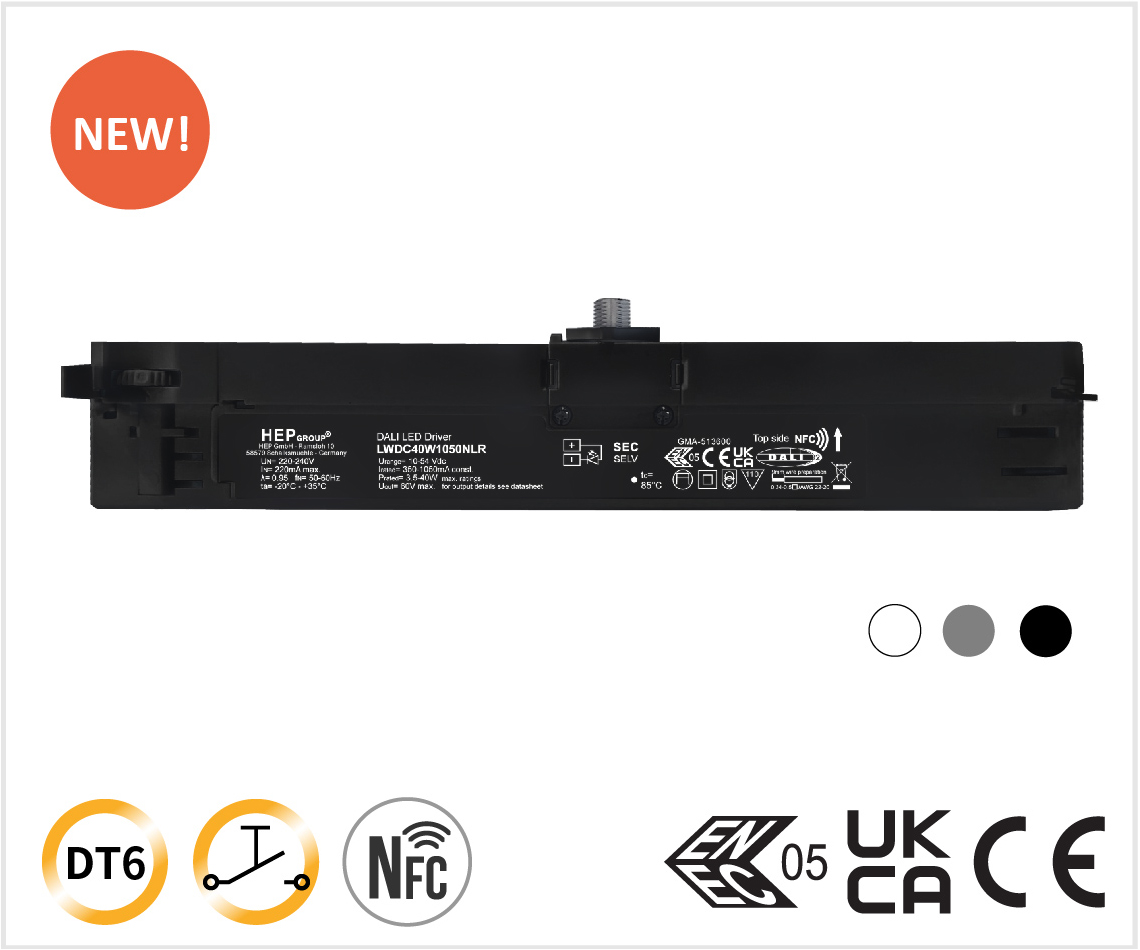

LWDC40W1050NLR_BK

LWDC 40W 350-1050mA NFC DALI-2 DT6 TouchDIM


3.5W - 40W DALI-2 LED Driver for 350-1050 mA, with low ripple, NFC

Model Vin lout Vout Pout Power Factor Current Ripple Dimension Certification
LWDC40W1050NLR 220–240 V 350-700 mA 10 - 54 V 3.5 - 37.8 W 0.95C ±5 % 255 x 43.4 x 31 mm ENEC/CE/UKCA
800 mA 10 - 50 V 8.0 - 40.0 W
900 mA 10 - 44 V 9.0 - 40.0 W
1000 mA 10 - 40 V 10.0 - 40.0 W
1050 mA 10 - 38 V 10.5 - 40.0 W

DC Output with constant current of 350-1050 mA
DALI-2 DT6 Dimming Range : 1-100%
Touch Dim Dimming Range : 1-100%

Average service life 50,000 h
Easy and fast output current setting via NFC (via NFC reader or mobile phone) ←
Operating ambient temperature -20°C - +35°C
Ripple current ±5%

Protection:
1. Short- & open circuit proof
2. Auto. overheat regulation or cut off
3. Overload protection
4. SELV

Datasheet LWDC40W1050NLR
CB Certificate NL-66519
ENEC Certificate 88-114559
SAA Certificate GMA-513600
EU Declaration of conformity CE_LWDC Series
GB Declaration of conformity UKCA_LWDC25_36_40W
