1.8W - 25.2W

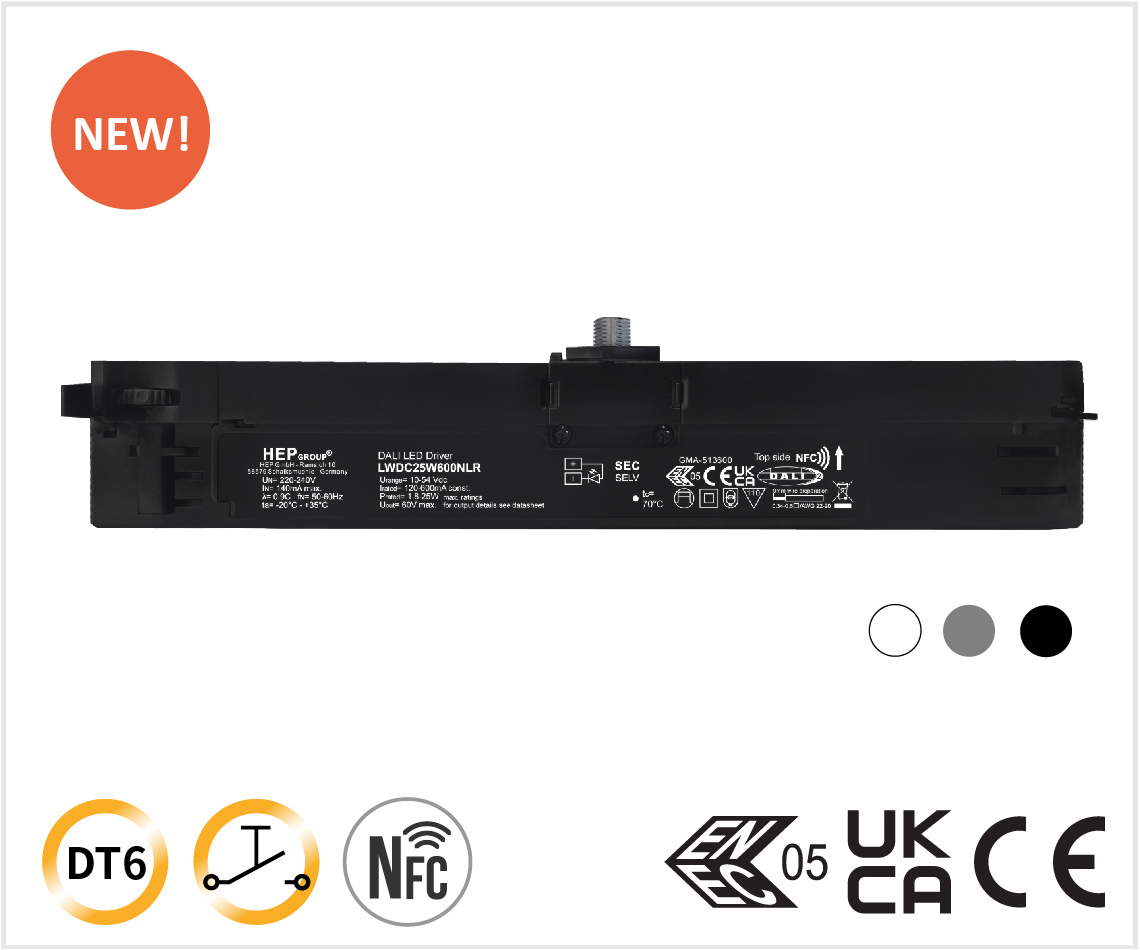

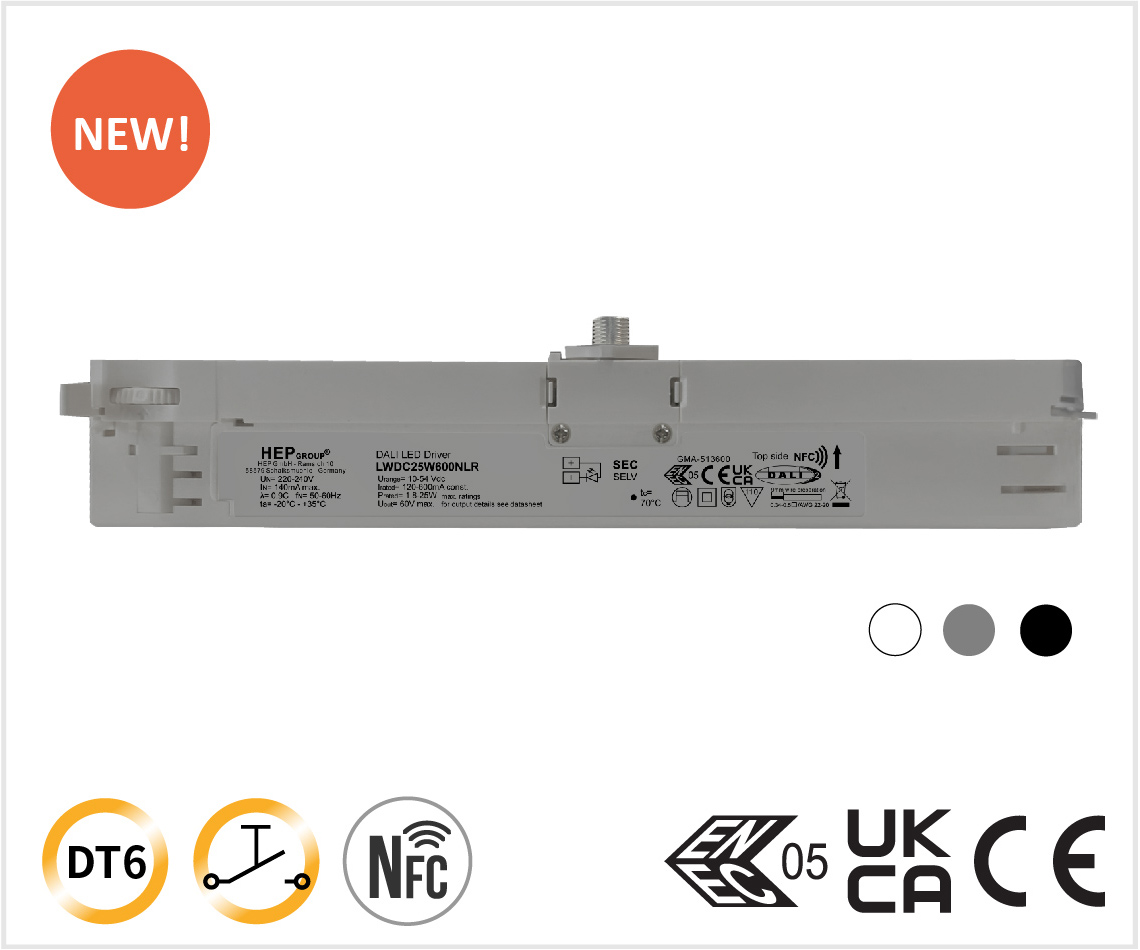

DALI-2 LED Driver for 120-600 mA
Output Current Adjustable via NFC Switch
with low ripple,
| Model | Vin | lout | Vout | Pout | Power Factor | Current Ripple | Dimension | Certification |
|---|---|---|---|---|---|---|---|---|
| LWDC25W600NLR | 220–240 V | 120-150 mA | 15 - 54 V | 1.8 - 8.1 W | 0.3C-0.97 | ±5 % | 255 x 43.4 x 31 mm | ENEC/CE/UKCA |
| 200-450 mA | 10 - 54 V | 2.0 - 24.3 W | ||||||
| 500 mA | 10 - 50 V | 5.0 - 25.0 W | ||||||
| 600 mA | 10 - 40 V | 6.0 - 25.2 W |
| Datasheet | LWDC25W600NLR | |
|---|---|---|
| CB Certificate | NL-102420 | |
| ENEC Certificate | 88-133822 | |
| SAA Certificate | GMA-513600 | |
| EU Declaration of conformity | CE-LWDC | |
| GB Declaration of conformity | UKCA_LWDC25_36_40W |
