LADC 45W 350-1050mA NFC Wireless_HEPXIDEA DALI-2 DT8 TouchDim TunableWhite

LADC45W1050N-T2CH+WBDA

LADC 45W 350-1050mA NFC Wireless_HEPXIDEA DALI-2 DT8 TouchDim TunableWhite


7W - 45W
DALI LED Driver for 350-1050 mA ,
with low ripple,
NFC,
Tunable white

Model Vin lout Vout Pout Power Factor Current Ripple Dimension Certification
LADC45W1050NZ-T2CH 220 - 240 V 350-900 mA 20 - 50 V 7 - 45 W 0,9C ±5 % 360 x 30.4 x 21.5 mm ENEC/CE/
UKCA
950 mA 20 - 46 V 19 - 43.7 W
1000 mA 20 - 43 V 20 - 43 W
1050 mA 20 - 40 V 21 - 42 W

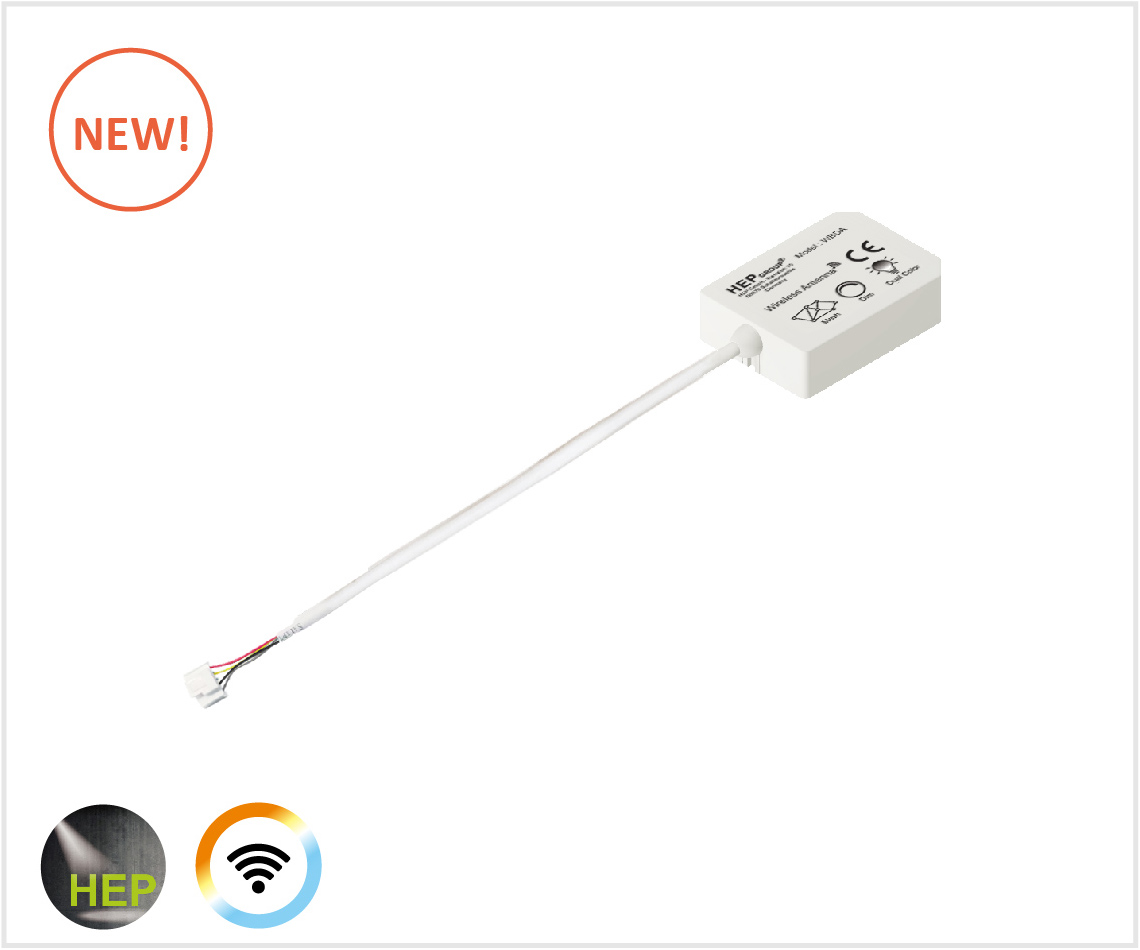

Model Wireless protocol Operating frequency Transmission distance Operating environment
WBDA(DALI CCT Control) Compliance with BLE version 4.2 and above 2.4G~2.485 GHz >20M (open sife) -40~+45 °C , 0~95% RH

DALI dimmable LED Driver for constant current of 200-700 mA
Average service life 50,000 h
Easy and fast output current setting via NFC
Operating ambient temperature -20°C - +50°C
Ripple current ±5%

Protection:
1. Short- & open circuit proof
2. Auto. overheat regulation or cut off
3. Overload protection
4. SELV

Datasheet LADC45W1050N-T2CH
Datasheet WBDA
CB Certificate NL-66515
ENEC Certificate 88-114560
EU Declaration of conformity CE_LADC45W1050N-T2CH
