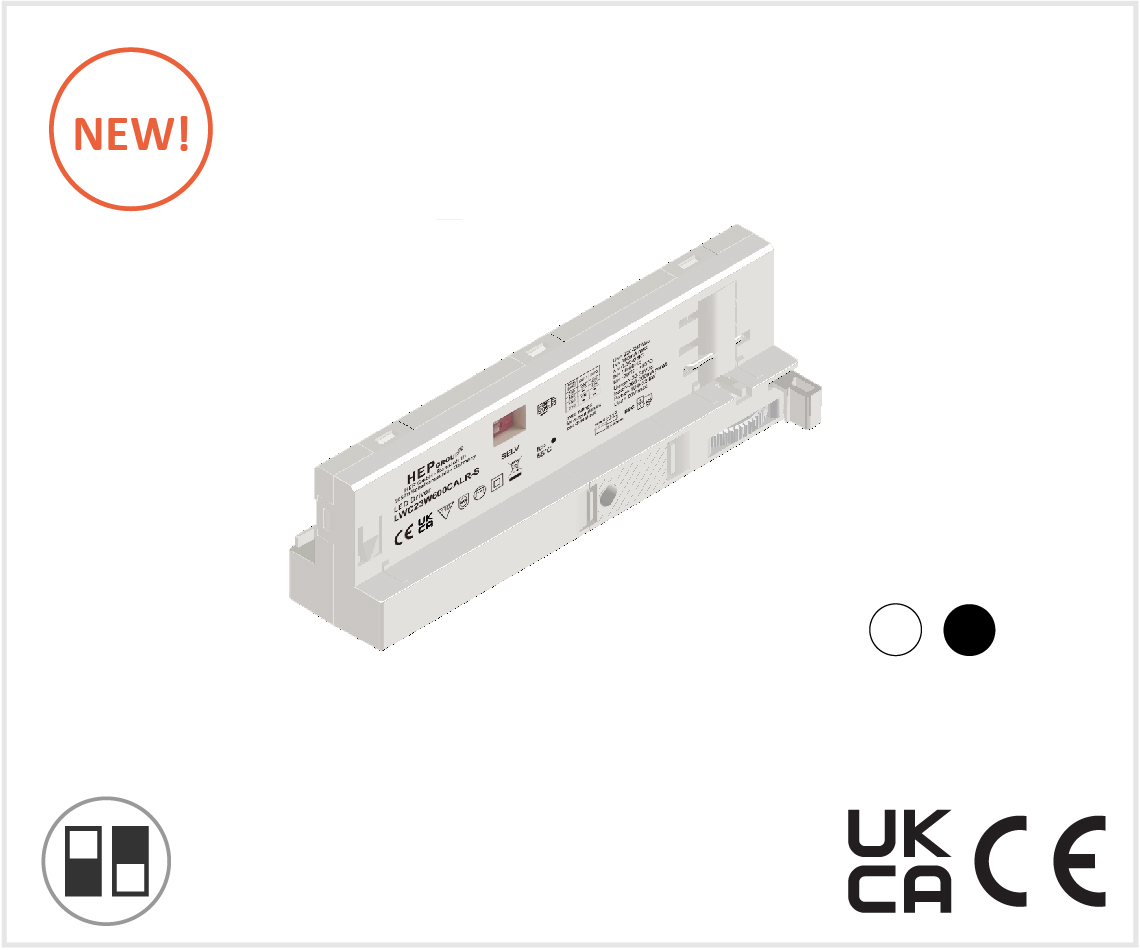

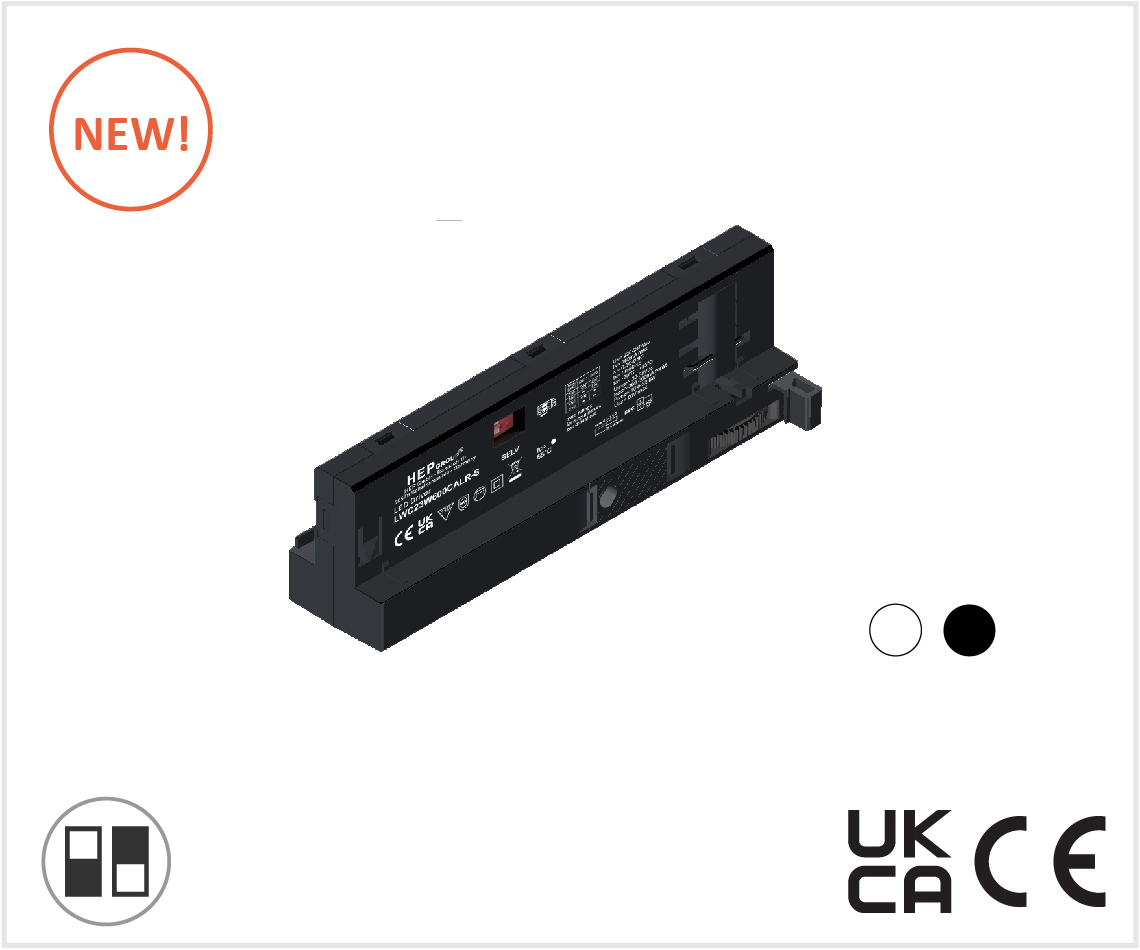

10.5W - 22.8W,
LED Driver for 350 / 450 / 500 / 600 mA,
Output Current Adjustable via Dip Switch,
with low ripple,
| Model | Vin | lout | Vout | Pout | Power Factor | Current Ripple | Dimension | Certification |
|---|---|---|---|---|---|---|---|---|
| LWC23W600CALR-S | 220–240 V | 350 mA | 30 - 38 V | 10.5 - 13.3 W | 0.8-0.9 | ±5 % | 138.9 x 30.9 x 43 mm | CE/UKCA |
| 450 mA | 30 - 38 V | 13.5 - 17.1 W | ||||||
| 500 mA | 30 - 38 V | 15.0 - 19.0 W | ||||||
| 600 mA | 30 - 38 V | 18.0 - 22.8 W |
| Datasheet | LWC23W600CALR-S | |
|---|---|---|
| EU Declaration of conformity | CE_LWC | |
| GB Declaration of conformity | UKCA_LWC |
