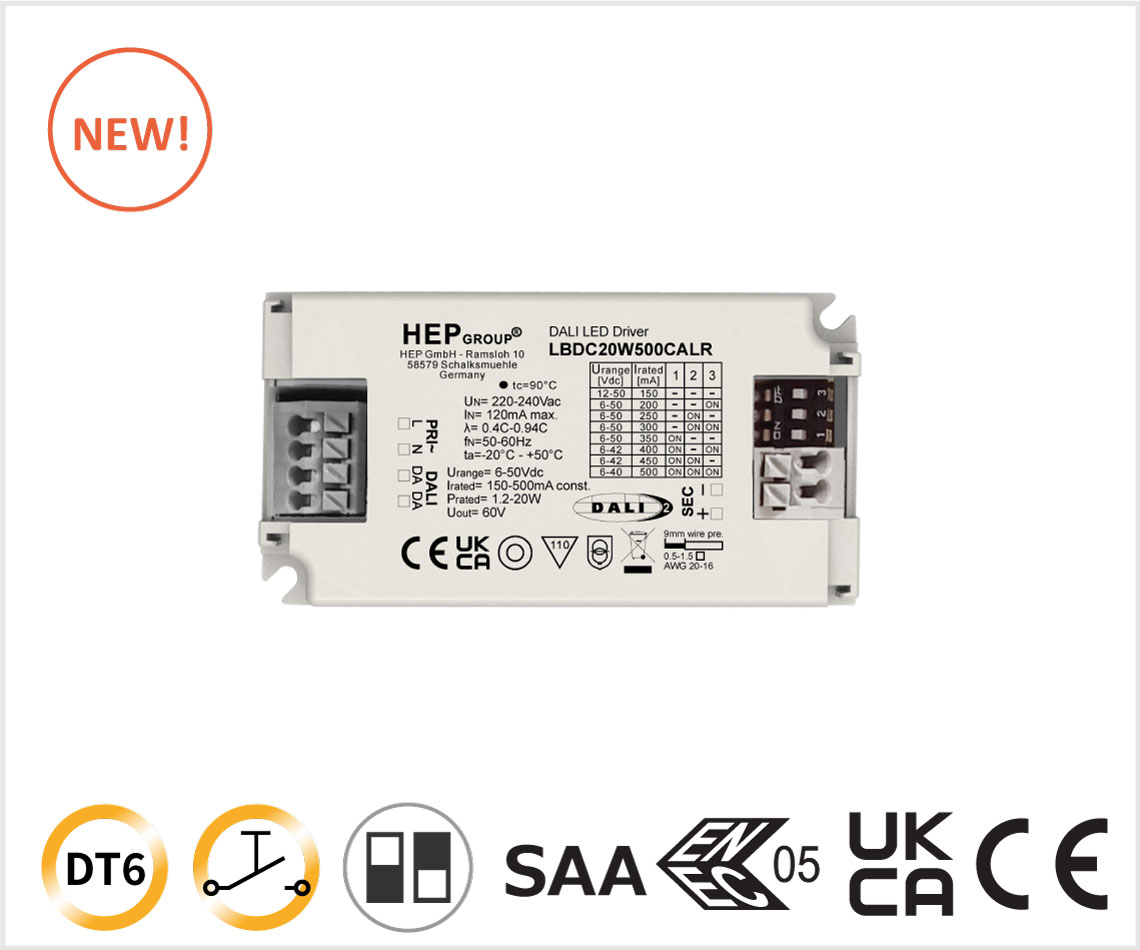

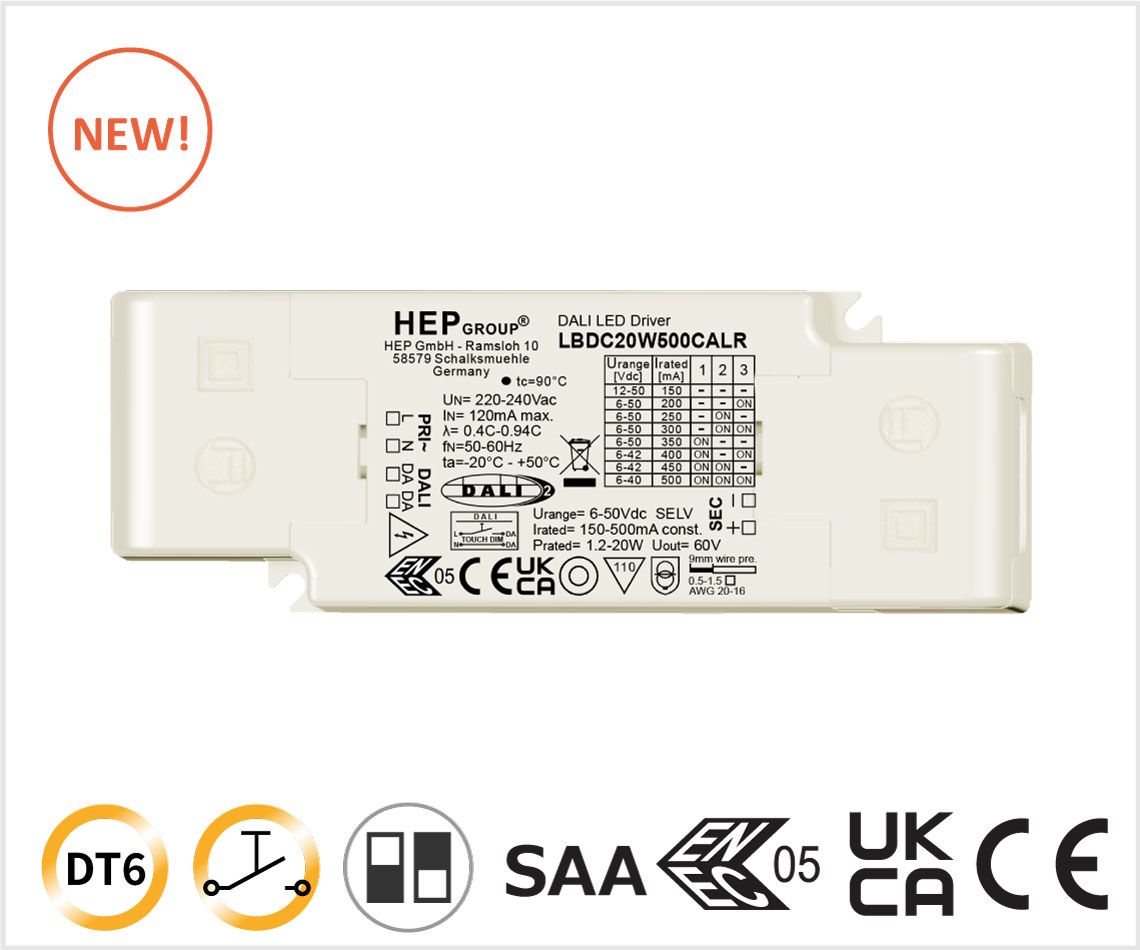

1.2 W - 20 W,
DALI dimmable LED Driver
150 / 200 / 250 / 300 / 350 / 400 / 450 / 500 mA,
Output Current Adjustable via Dip Switch,
Built-in type with double or reinforced insulation,
Optional with strain relief for independent installation,
Mini Types
| Model | Vin | lout | Vout | Pout | Power Factor | Current Ripple | Dimension | Certification |
|---|---|---|---|---|---|---|---|---|
| LBDC20W500CALR(-Z) | 220–240 V | 150 mA | 1.8-7.5 W | 12-50 Vdc | 0.4C-0.94 C | ±5% | Built-in 78 x 40.9 x 23 mm Independent 116 x 40.9 x 23 mm |
ENEC/CE/ SAA/UKCA |
| 220–240 V | 200 mA | 1.2-10.0 W | 6-50 Vdc | |||||
| 220–240 V | 250 mA | 1.5-12.5 W | 6-50 Vdc | |||||
| 220–240 V | 300 mA | 1.8-15.0 W | 6-50 Vdc | |||||
| 220–240 V | 350 mA | 2.1-17.5 W | 6-50 Vdc | |||||
| 220–240 V | 400 mA | 2.4-16.8 W | 6-42 Vdc | |||||
| 220–240 V | 450 mA | 2.7-18.9 W | 6-42 Vdc | |||||
| 220–240 V | 500 mA | 3.0-20.0 W | 6-40 Vdc |
| Datasheet | LBDC20W500CALR | |
|---|---|---|
| CB Certificate | NL_104136 | |
| ENEC Certificate | 88_136512 | |
| SAA Certificate | GMA-518181 | |
| EU Declaration of conformity | CE-LBDC20W500CALR | |
| GB Declaration of conformity | UKCA-LBDC20W500CALR | |
