6.3 - 19.6 W
1-10V dimmalbe LED Driver - 350 / 500 / 550 / 700 mA
Dip switch
| Model | Vin | lout | Vout | Pout | Power Factor | Current Ripple | Dimension | Certification |

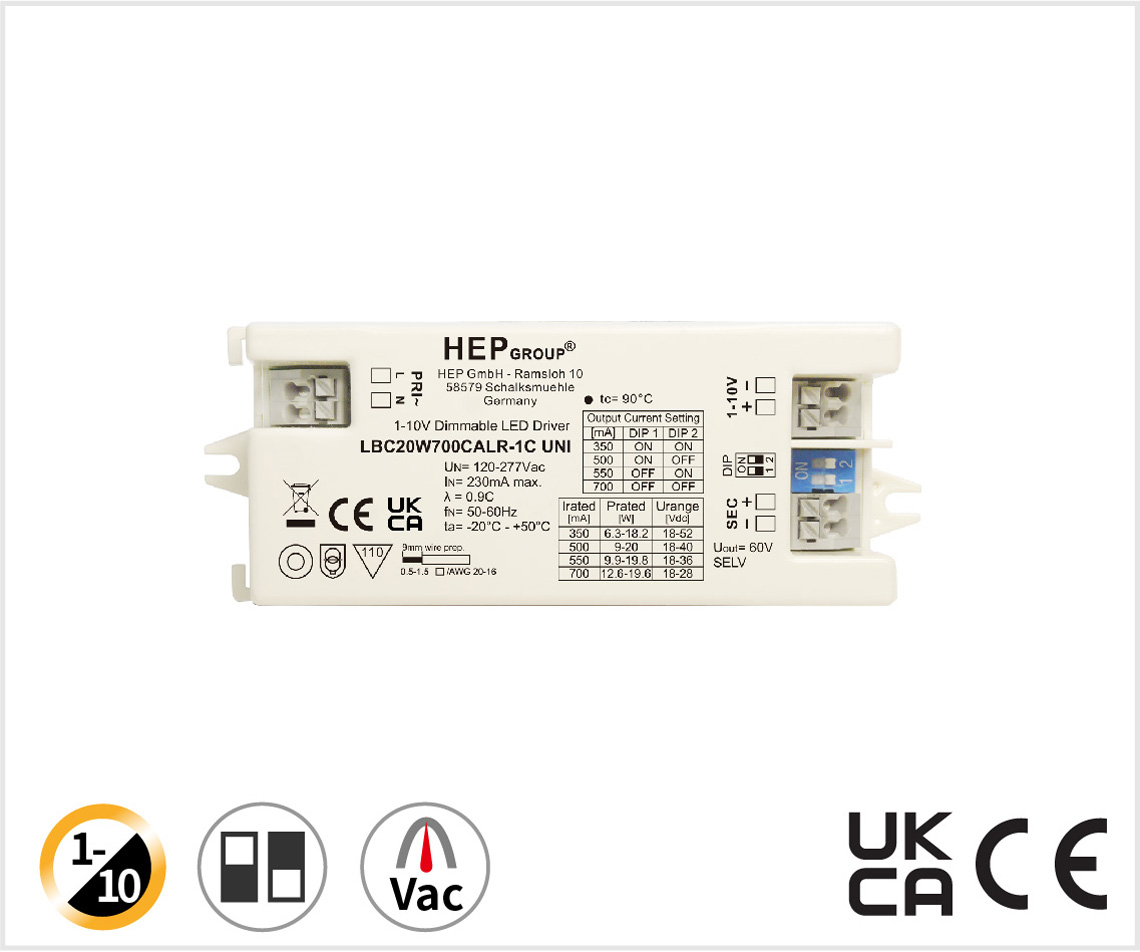

| LBC20W700CALR-1C UNI | 120 - 277 V | 350 mA | 18 - 52 V | 6.3-18.2 W | 0.9 C | ±5 % | 112.8 x 43.8 x 30 mm 141.8 x 43.8 x 30 mm |
CE / ENEC |
| 500 mA | 18 - 40 V | 9.0-20.0 W | ||||||
| 550 mA | 18 - 36 V | 9.9-19.8 W | ||||||
| 700 mA | 18 - 28 V | 12.6-19.6 W |
1 - 10 V LED Driver for constant current 350 / 500 / 550 / 700 mA
Average service life 50,000 h
Easy and fast output current setting via Dip switch
Operating ambient temperature -20°C - +50°C
Protection:
1. Short- & open circuit proof
2. Overload protection
3. Overheat protection
| Datasheet | LBC20W700CALR-1C UNI |
| CB Certificate | NL-77222 |
| ENEC Certificate | 88-121178 |
| EU Declaration of conformity | CE_LBC CALR Series |
